Measure App KPIs

The Vega App KPI Visualizer helps you monitor and optimize your app's performance by measuring key metrics that impact your user experience. This tool provides data about app launch times, memory usage, and user interface (UI) responsiveness. By regularly tracking these KPIs, you make sure that your app delivers a smooth, responsive experience that meets your users' expectations. Before you publish your app to the App Store, make sure to measure the performance of the release variant to verify that your users have a responsive experience.

This page explains how to:

• Use the KPI Visualizer
• Measure and understand your app's key performance metrics
• Set up measurements
• Interpret results

Prerequisites

Before you use the Vega App KPI Visualizer, make sure you:

1. Install the Vega Performance API module:

   Copy code Copied to clipboard.

    npm install @amazon-devices/kepler-performance-api


2. Read the following sections:

   • What each KPI measures and its target guidelines. See App KPI metrics and guidelines.
   • How apps launch in different scenarios. See Launch scenarios.
   • When to set performance markers. See Fully drawn marker.

3. To measure foreground memory, video fluidity, or UI fluidity, follow the instructions in Measure Fluidity and Foreground Memory.

4. Choose your measurement method:

   • Measure KPIs in Visual Studio (VS) Code
   • Measure KPI with command-line interface (CLI)

App KPI metrics and guidelines

The following table presents both main KPIs and their associated Micro KPIs. Main KPIs measure overall performance metrics, while Micro KPIs represent specific measurable components that contribute to a main KPI.

For example, Application JavaScript bundle load time is a Micro KPI that contributes to the overall time-to-first-drawn (TTFD) KPI. Empty Micro KPI cells indicate that no specific sub-components are currently being measured for that main KPI.

Launch scenarios

The KPI Visualizer measures two types of app launch scenarios to evaluate performance for TTFF and TTFD:

• Cool start - When a user launches an app for the first time, and the system loads all resources and dependencies into memory.

• Warm start - When a user moves an app from background (an inactive state) to foreground (an active state) with some resources and dependencies already in memory.

Fully drawn marker

A fully drawn marker signals when your app becomes interactive for users. The marker:

• Indicates when your app completes loading its essential components.
• Marks when users can start interacting with your app.
• Helps measure TTFD performance.

To implement fully drawn marker in your app:

1. Add the useReportFullyDrawn hook to your app.
2. Place markers at these key points:
   • Cool start - After loading initial data and rendering the main screen.
   • Warm start - When your app becomes responsive after foregrounding.

The following code sample shows how to add fully drawn marker:

Copy code Copied to clipboard.

import { useReportFullyDrawn } from '@amazon-devices/kepler-performance-api';
import React, { useCallback, useEffect, useState } from 'react';
import { useKeplerAppStateManager } from '@amazon-devices/react-native-kepler';
...
...
export const App = () => {
  const reportFullyDrawnCallback = useReportFullyDrawn();
  const KeplerAppStateManager = useKeplerAppStateManager();
  const [appState, setAppState] = useState(KeplerAppStateManager.getCurrentState());

  // Using a useEffect Hook to have the fully drawn reporting performed
  // post first render after cool launch.

  // If the app performs additional asynchronous processing
  // that needs to be completed before it is fully drawn, pass the
  // completion state in the array of dependencies and check the state
  // inside the hook.
  useEffect(() => {
    reportFullyDrawnCallback();
  }, [reportFullyDrawnCallback]);

  // Emit fully drawn marker on the first draw after warm launch.
  const handleAppStateChange = useCallback((stateChange: any) => {
    if (

	 appState.match(/^(inactive|background)$/) &&
	 stateChange === 'active'
	) {
	  reportFullyDrawnCallback();
	}
	if (stateChange.match(/^(inactive|background|active|unknown)$/)) {
	  setAppState(stateChange)
	}
  }, [appState, reportFullyDrawnCallback]);

  useEffect(() => {
    const changeSubscription = keplerAppStateManager.addAppStateListener(
	  'change',
	  handleAppStateChange,
    );
    return () => {
	  changeSubscription.remove();
	}
  }, [handleAppStateChange]);
  ...
  ...
  return (
    <View style={styles.container}>
      ...
      ...
    </View>
  );
};

Measure KPIs in VS Code

1. Open the command palette in VS Code:

   • For Mac: shift + command ⌘ + p
   • For Linux: Ctrl + Shift + P



2. Enter Kepler: Launch App KPI Visualizer and press Enter.



   You can also click the App KPI Visualizer from the Kepler Studio panel.

3. Select a use case:



   Note: You can select multiple cases to run.

   To measure foreground memory and video streaming fluidity, create a custom test scenario that match how your users interacts with your app.

   For example:

   • For memory testing - Include video playback or image loading.
   • For streaming - Include typical video watching patterns.

   For UI fluidity measurement, develop a test scenario that replicates the most common user interactions in your app. Without a custom scenario, the default test scrolls vertically and horizontally through your app's front page, which might not accurately represent your users' behavior.

   For guidance on generating test scenarios, see Measure Your App’s UI Fluidity.

   After you select your use cases, the visualizer starts and performs three iterations for the following KPIs:

   • Cool start KPIs

     • Launch the test app on the device.
     • Wait for 10 s for the test app to completely load.
     • Close the test app.
     • Process the KPIs.

   • Warm start KPIs

     • Launch the test app on the device.
     • Launch another app on the device, moving the test app to the background.
     • Launch the test app, moving it to foreground.
     • Wait for 15 s for the test app to completely load.
     • Close the test app.
     • Process the KPIs.

   • Foreground memory KPIs

     • Launch the test app on the device.
     • Perform the specified steps in test scenario, and capture the KPIs for analysis and reporting.
     • Close the test app.
     • Process the KPIs.

   • Background memory KPIs

     • Launch the test app on the device.
     • Launch another app on device, moving the test app to the background.
     • Wait for 15 s to collect the KPIs of the test app.
     • Close the test app.
     • Process the KPIs.

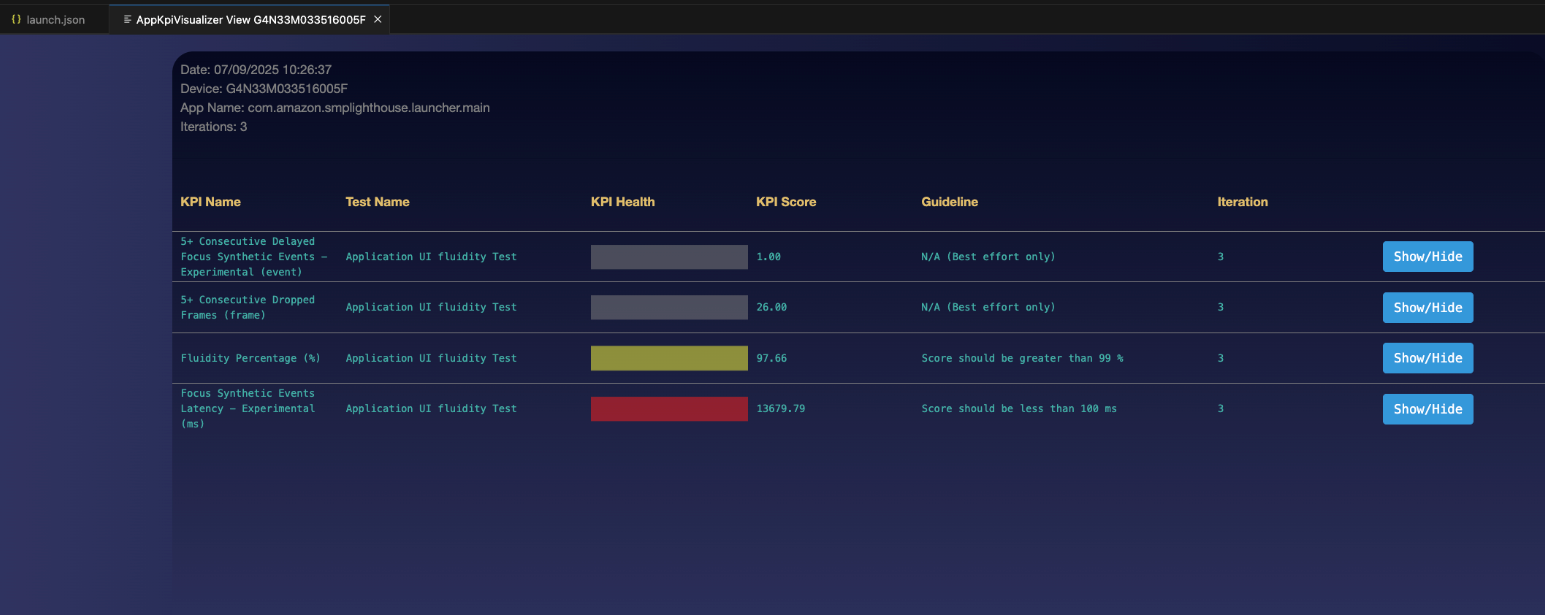

   • UI fluidity KPIs

     • Launch the test app on the device.
     • Choose your test method:
       • Custom test - Use your own UI interaction scenarios
       • Default test - Uses standard scrolling patterns
         • 2 sets of horizontal scrolls (5 left, 5 right)
         • 2 sets of vertical scrolls (5 down, 5 up)
         • 900 ms between actions
     • Click the Cancel button or Esc key to end the test.



     • Capture the KPIs for analysis and reporting.
     • Close the test app.
     • Process the KPIs.
   Important: UI Fluidity Test Scenario Considerations

   The predefined test scrolls through your app's home page, which might not represent your app's usage pattern. Create a custom test scenario that reflects your app's specific UI interactions.

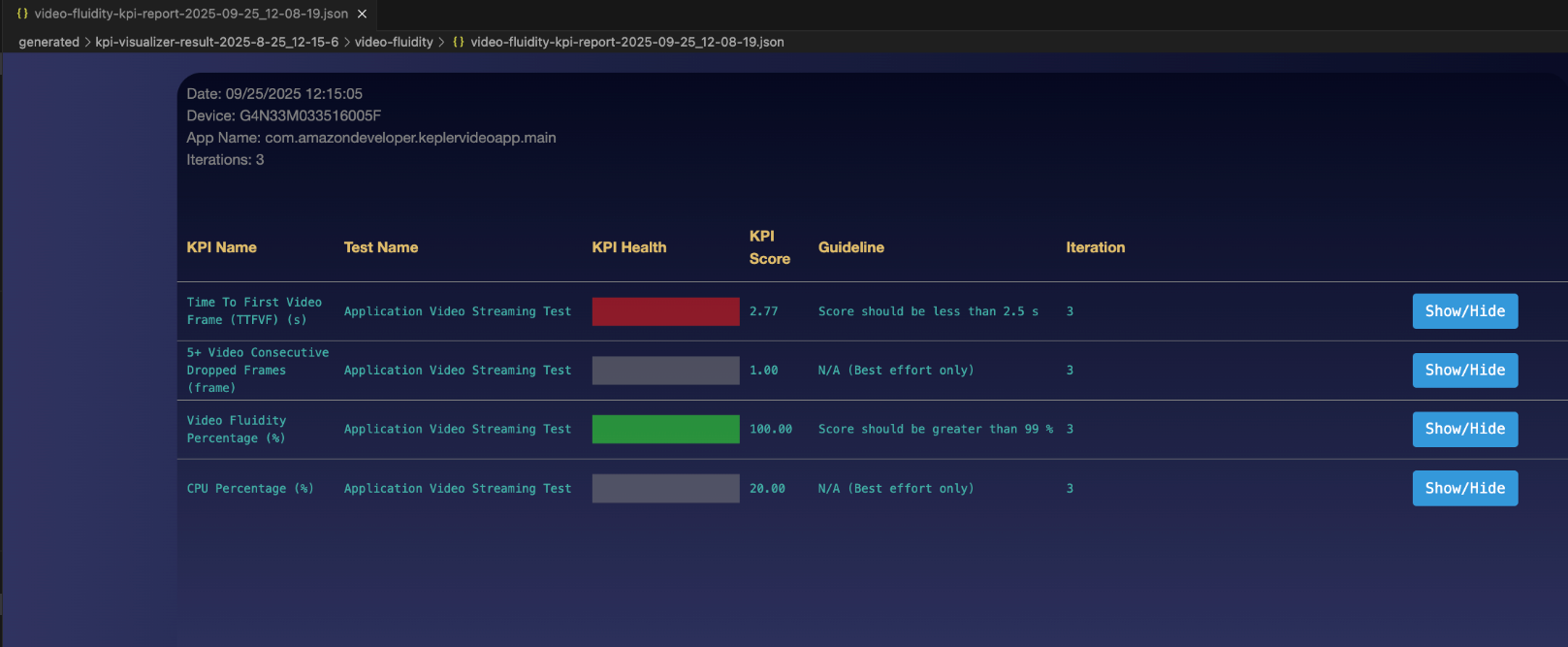

   • Video playback fluidity KPIs

     • Launch the test app on the device.
     • Perform the steps in video playback test scenario, and capture the KPIs for analysis and reporting.
     • Close the test app.
     • Process the KPIs.

   To stop the visualization process, click Cancel.



4. Choose whether to ignore trace loss during the test.



   When your app has performance issues, significant trace loss can occur. The Vega App KPI Visualizer won't load traces and shows no KPIs (appear as N/A) in the report.

   You can choose to ignore trace losses when generating KPI reports to view the metrics. However, ignoring trace losses produces KPI values that appear better than actual performance.

5. View KPI scores in the visualizer window.

   The window shows the P90 (90^th percentile) value calculated from three test iterations.

6. To assess the results, see Understand the performance report.

Measure KPIs with CLI commands

1. At the command prompt, run the kepler exec perf doctor command to check if your host and target devices are ready.

   kepler exec perf doctor [--app-name]


   Replace --app-name with the package ID from the manifest.toml file.

   Example:

   kepler exec perf doctor --app-name=com.amazondeveloper.keplervideoapp.main

   Firmware: Stable build (<device-user> OS 1.1 (TV Mainline/1387)).
   ✅ Network: Connected
   ✅ Free disk space: 43.31 GB available.
   ✅ Appium: Installed (version 2.2.2)
   ✅ Appium driver for Vega: Installed - kepler@3.18.0 [installed (linked from /Users/.../AppiumVegaDriver)]
   ✅ com.amazondeveloper.keplervideoapp.main is installed.

   Collecting CPU (4 cores) and Memory data...
   ❌ Max User CPU usage at 241.20%. Check for unwanted processes.
   ❌ Max System CPU usage at 222.80%. Check for unwanted processes.
   ✅ Average User CPU usage at 166.16%
   ✅ Average System CPU usage at 101.84%
   ✅ Min memory available at 30.80%
   ✅ Average memory available at 32.16%

   ! Device: Not ready for performance testing. Please review lines with X (error) and ! (warnings) symbols.


2. Start the Vega App KPI Visualizer:

   kpi-visualizer --app-name=[app-name]


   For kpi-visualizer, app-name is the only required parameter. Replace [app-name] with the id of default interactive component from the manifest.toml file.

3. (Optional) Specify the default number of iterations. Default iterations: 3 or 30 if –certification is used.

   --iteration [number]


4. (Optional) Specify which KPI to measure:

   --kpi [kpi name]


   Without this parameter, the visualizer measures cool start TTFF and TTFD KPIs by default.

5. View all available options:

   Copy code Copied to clipboard.

    kpi-visualizer --help


   Example:

    kepler exec perf kpi-visualizer --help

    NAME:

    KPI Visualizer Tool

    DESCRIPTION:

    Measures key performance metrics like app launch times, memory usage, and UI responsiveness to optimize your app's user experience.

    SYNOPSIS:

    kepler exec perf kpi-visualizer [parameters]

    Use 'kepler exec perf command --help' to retrieve information for a specific command.

    PARAMETERS:

    --iterations ITERATIONS
          Sets the number of times to run the test. This overrides .conf setting.
    --record-cpu-profiling
          Enables CPU profile recording during test execution.
    --sourcemap-file-path SOURCEMAP_FILE_PATH
          Specifies the path to the source map file.
    --grpc-port port
          Specifies the port number for the gRPC server.
    --certification
          Runs tests in certification mode using 30 iterations and 90th percentile aggregation.
    --expected-video-fps EXPECTED_VIDEO_FPS
          Specifies the target FPS for the app under test.
    --kpi KPI
          (Optional) Specifies the performance metric to measure.

          Supported scenarios:
          1. cool-start-latency -  Measures app launch latency from cold start. Includes both TTFF and TTFD by default.
          2. ui-fluidity - Measures smoothness of UI interactions.
          3. warm-start-latency - Measures first frame display latency when resuming an app from background to foreground.
          4. foreground-memory -  Measures app memory usage while in foreground state.
          5. background-memory -  Measures app memory usage while in background state.
          6. video-fluidity - Measures smoothness of video playback. Requires a test scenario (--test-scenario) that initiates video playback.

    --test-scenario TEST_SCENARIO
          Specifies the Python script that defines the UI test scenario. Use the generate-test-template command to create a test scenario template.

    --monitor-processes MONITOR_PROCESSES [MONITOR_PROCESSES ...]
          Specifies additional services to monitor during testing.

          Example:
          --monitor-processes webview.renderer_service

    --ignore-trace-loss
          Skips trace data loss verification during test.

    --help
          Shows this help message.

    --version, -v
          Shows current version of this perf tool.
    %


After the visualization completes, you see a report summary in stdout.

Example report:

Performance Analyzer KPI Report

Firmware version: Device OS 1.1 (VegaMainlineTvIntegration/XXXX), serial number: XXXXXXXXXXXXXXXX
Date: 01/09/2025, test: app-background, iterations requested: 3, iterations completed: 3, duration: 15 seconds

Memory Statistics
                            | n   | min    | mean    | max    | stdev  | ci (+/-)
App Resident Memory (kB)    | 104 | 131044 | 132139.0| 133136 | 865.2  | 140.8 √

When KPIs show -1, it indicates unavailable data for mean, min, and max values. For TTFD, this might occur when the app doesn't call Report Fully Drawn API.

When KPIs don't appear, there might be a significant trace loss during data collection. KPI Visualizer won't load traces and shows no KPIs. To view KPIs despite trace loss, run:

--ignore-trace-loss <true/false>

Understand the performance report

The Vega App KPI Visualizer shows a performance report, which includes:

1. Test information

   • Date - The date when the system captures the KPI data.
   • Device Serial ID - The unique identifier of the device running the app.
   • App - The name of the app for which the KPI data appears.
   • Number of iterations - The number of times the KPI measurement process runs.

2. KPI Name - The name of the KPI with its unit.

3. Test Name - The name of the test or the completed use case.

4. KPI Health - A color-coded system representing the health of each KPI:

   • 🟢 (Green) - Meets the recommended guideline.
   • 🟡 (Yellow)- Within 10% of the guideline.
   • 🔴 (Red) - Exceeds the guideline by more than 10%.

5. KPI Score - The numeric value of the KPI, which appears in the same unit as specified in the KPI name. If the visualizer can’t calculate the KPIs, it displays "N/A" for the KPI score and list the KPI Health as "Unknown."

6. Guideline - The recommended value or range for the KPI score based on industry standards or performance targets.

Example results

The following images show sample results for each use case. Pay attention to the KPI Health indicators and scores relative to guidelines.

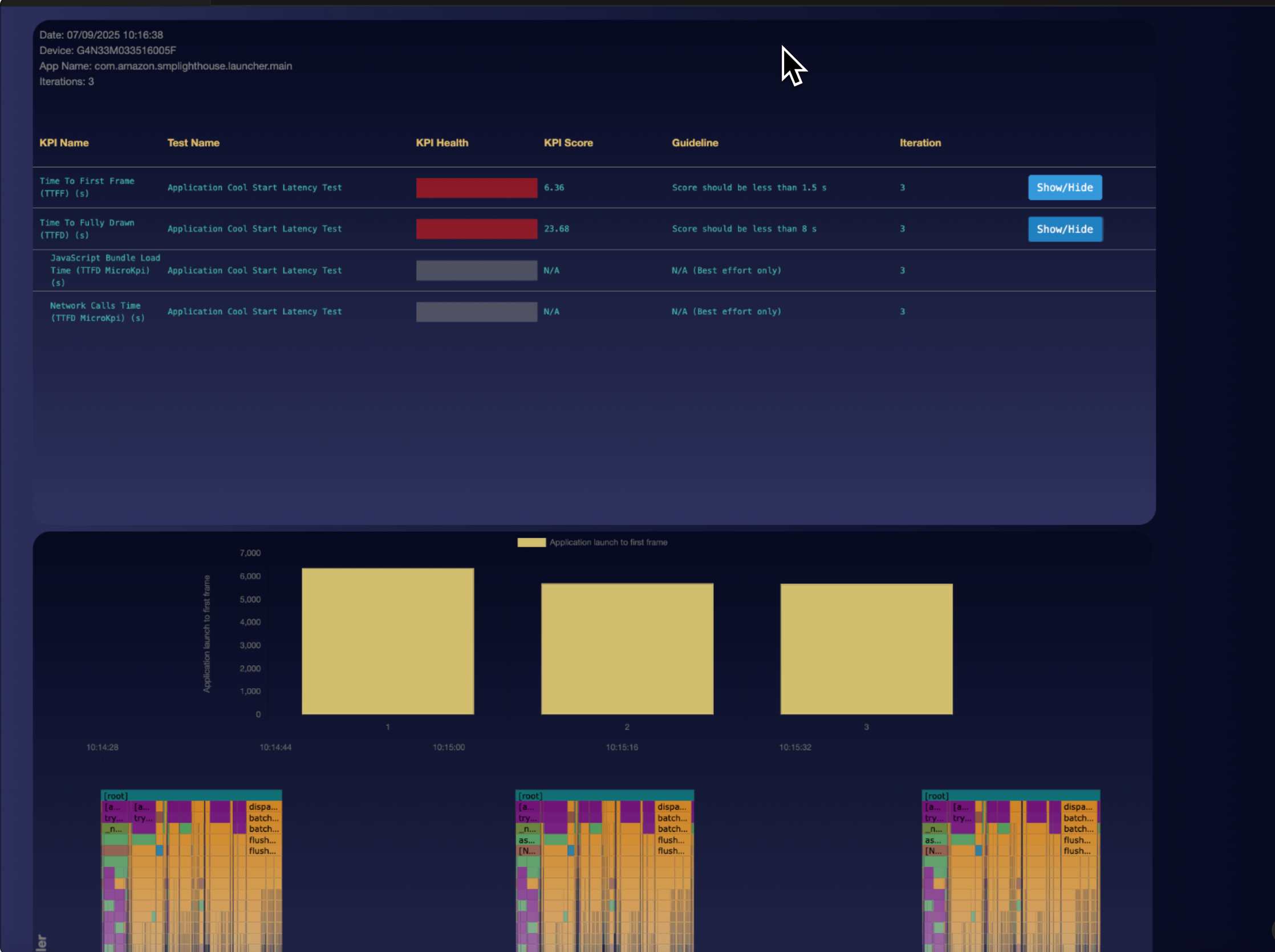

Use case: Cool start TTFF and TTFD

The following result shows launch performance metrics. Green indicators show the app meets launch time guidelines.

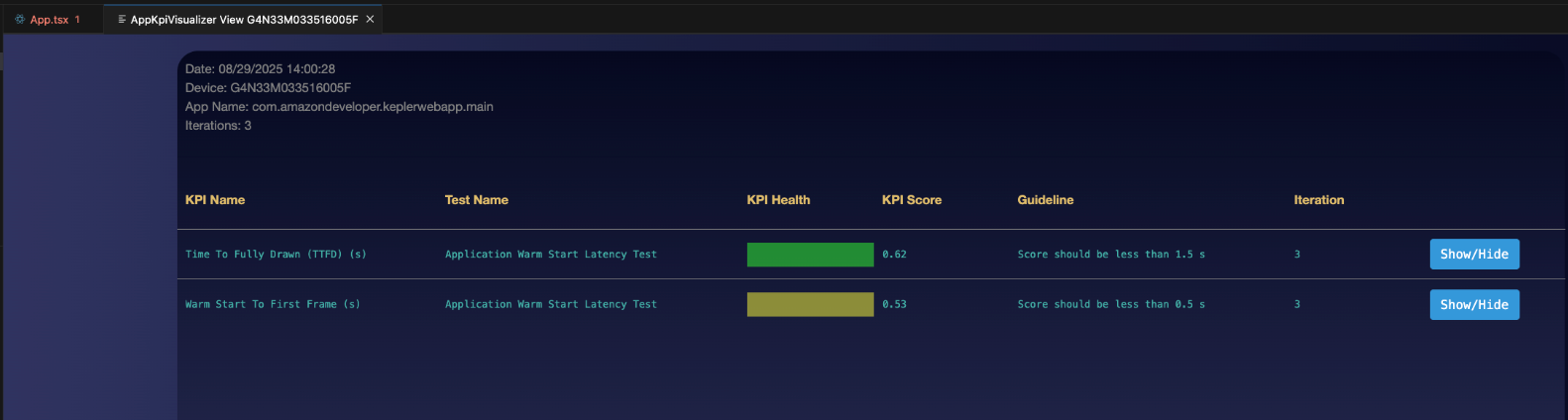

Use case: Warm start TTFF and TTFD

The following results shows how your app resumes from background state. Compare TTFF and TTFD times to evaluate optimization needs.

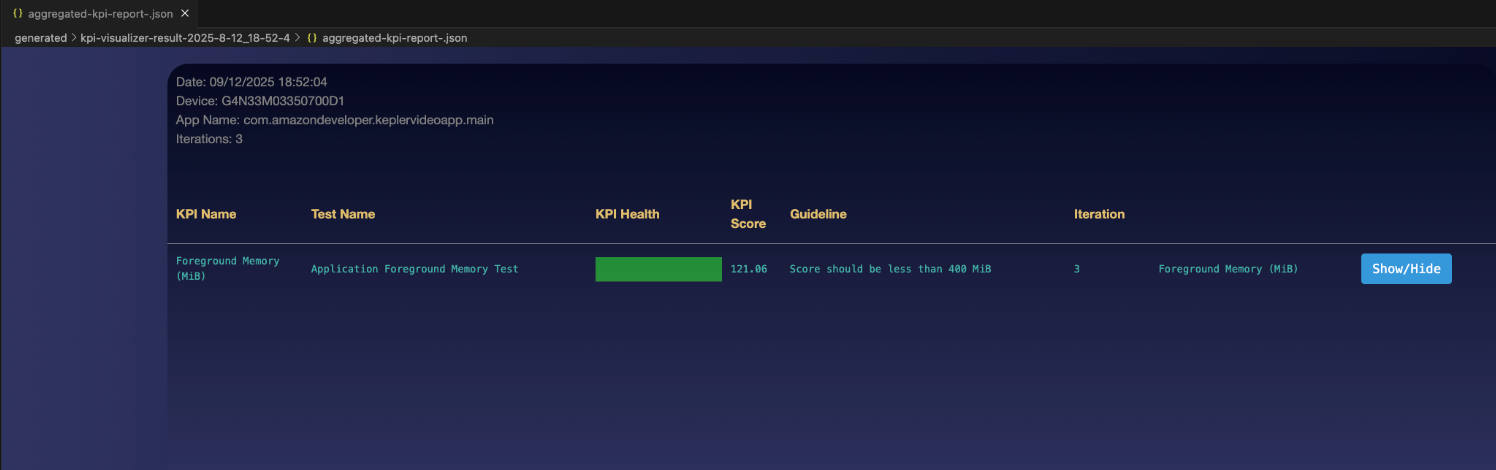

Use case: Foreground memory

Shows your app's memory usage during active use. Monitor this metric to prevent performance issues from excessive memory consumption.

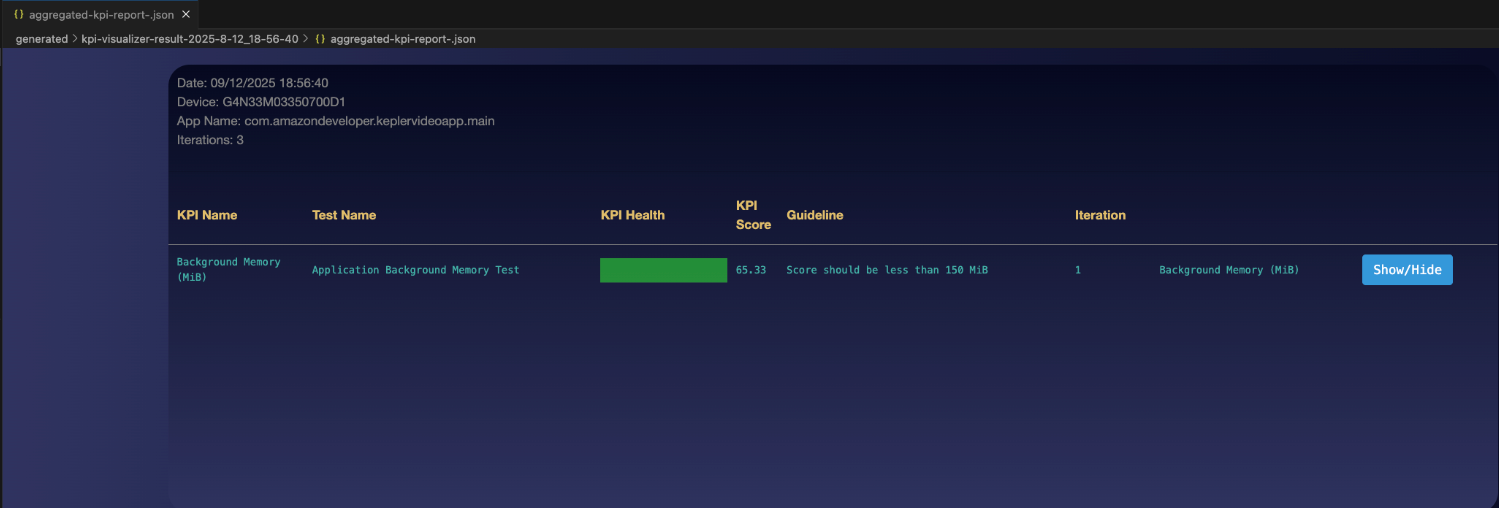

Use case: Background memory

Shows your app's memory footprint while in background state. Important for understanding your app's impact on system resources when inactive.

Use case: UI fluidity

Shows how smoothly your app handles user interactions. The percentage indicates frames successfully rendered during scrolling and navigation.

Use case: Video playback fluidity

Shows how smoothly your app plays video content. The percentage represents successful frame delivery at the intended playback rate.

Open a KPI report

After the Vega App KPI Visualizer completes the test scenarios, it generates the following report files:

• aggregated-kpi-report-[timestamp].json - Consolidates KPI data from all test scenarios.

• [test-name]-kpi-report-[timestamp].json - Creates one file for each individual test scenario. The [test-name] identifies the specific scenario.

The [timestamp] tells you when the Vega App KPI Visualizer generated the report.

To open a KPI report, open a previous recording. Then use one of these methods:

Option 1 (Preferred): Use Quick open This method provides access to your recordings through VS Code's interface or CLI.

From VS Code:

1. Find the KPI report file (example: app-launch-kpi-report-[timestamp].json) using VS Code Quick Open or in the project's generated directory.
2. Click the file once to preview or twice to open in active mode.

From CLI:

1. Open a terminal window and enter:

   code <<path-to-recording-file>>

If your terminal doesn't recognize the code command:

1. Open VS Code.

2. Open the command palette:

   • Mac: Cmd+Shift+P
   • Linux: Ctrl+Shift+P
3. Run "Shell Command: Install code command in PATH".
4. Retry the command.

Option 2: Use VS Code command palette This method provides access to your recording using VS Code's built-in command interface or if Quick Open isn't available.

1. Open VS Code.

2. Open the command palette:

   • Mac: Cmd+Shift+P
   • Linux: Ctrl+Shift+P
3. Enter Kepler: Open Recording View.
4. Select the file you want to open, such as app-launch-kpi-report-[timestamp].json.

Related topics

• Measure Fluidity and Foreground Memory
• Identify UI Rendering Issues
• Monitor CPU Usage
• Monitor and Record Memory
• Detect Overdraw

Last updated: Sep 30, 2025
