Inspect Your App with Appium Inspector

Appium Inspector is a companion tool for Appium that helps in writing reliable automated test scripts for native, mobile, and hybrid apps. It lets you view an app's screen and page structure, exposing the underlying UI elements and properties.

Appium Inspector is a free, open-source tool hosted on GitHub. It provides visibility into an app's UI, allowing you to:

• Inspect the app's screen and page structure
• Select UI elements and view their properties
• Use XPath expressions to search for elements
• Trigger actions like clicking on selected elements
• Record scripts for automated testing

Prerequisites

Make sure you complete the steps in Install Appium for Vega Integration.

Inspect your app

1. Connect your device:

   Fire TV Stick:

   kepler exec vda connect <DEVICE_IP>


   Copy code Copied to clipboard.

   kepler exec vda devices


   Vega Virtual Device:

   Copy code Copied to clipboard.

   kepler virtual-device start


2. Start the automation toolkit:

   Copy code Copied to clipboard.

   touch /tmp/automation-toolkit.enable


3. Run the Appium Server:

   Copy code Copied to clipboard.

   appium


4. Launch the Appium Inspector:

   On Mac: Open from Applications folder or Spotlight search

5. Add capabilities.

   Learn about required capabilities in Manage Appium Sessions.

6. Click the Start session button to start the Appium Inspector.



   Appium Inspector obtains a screenshot of the displayed content on your device and shows the XML source in the App Source panel.



   To update the displayed content, click the Refresh Source and Screenshot button.

Other functionalities

Select an element

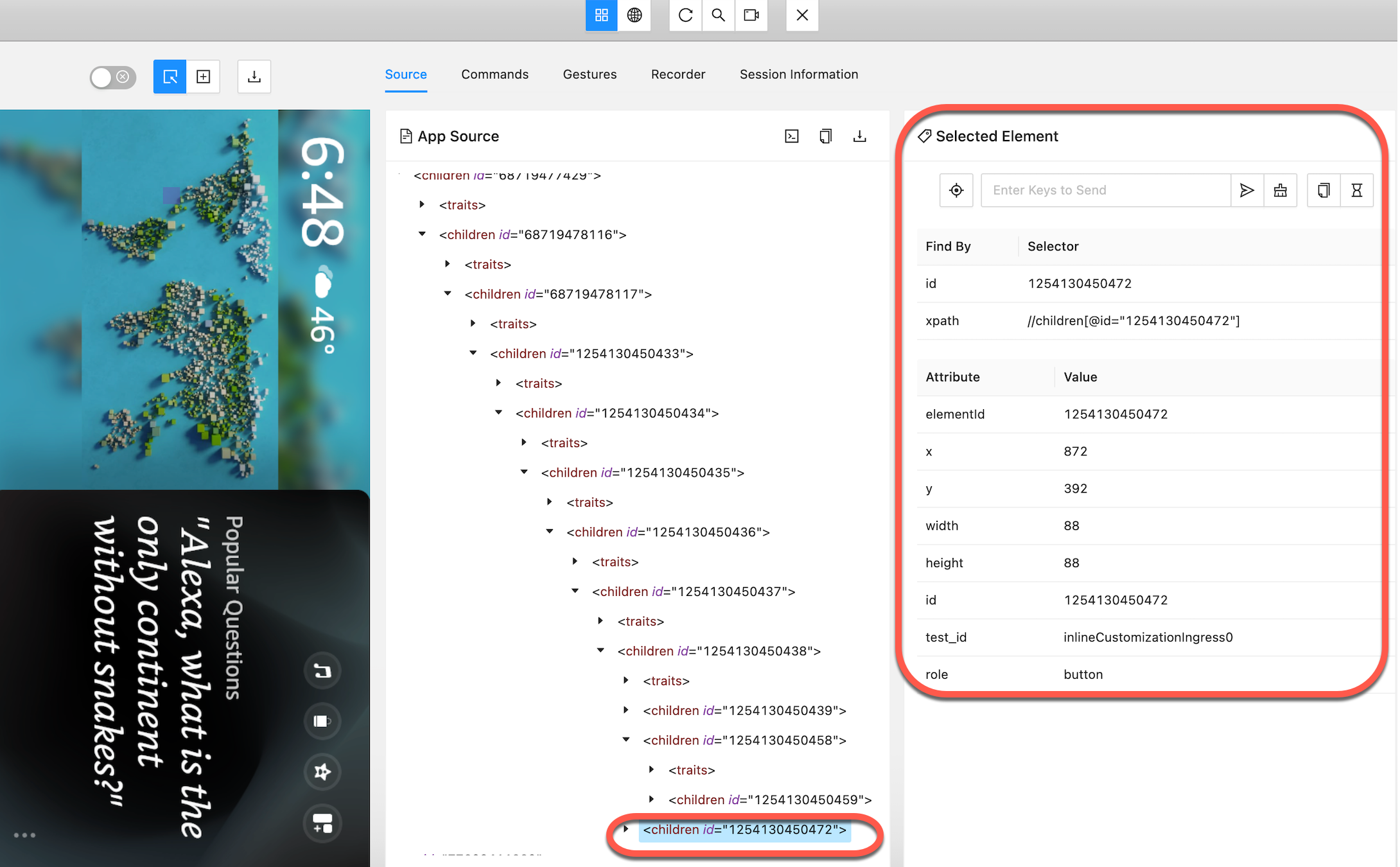

In the App Source panel, select an element from the displayed XML tree.

The page displays the element properties and available actions in the Selected Element panel.

Use xpath expressions to search for elements

Appium Inspector suggests a XPath selector with an id for the selected element. However, id values can be dynamic. Instead, use the test_id attribute or other attributes like role or description for more reliable element selection.

Examples of valid xpath expressions

• //*[@role="button"] to get all the elements containing role="button" attribute.
• //*[contains(@description, "Music")] to get all the elements containing Music in the description attribute.

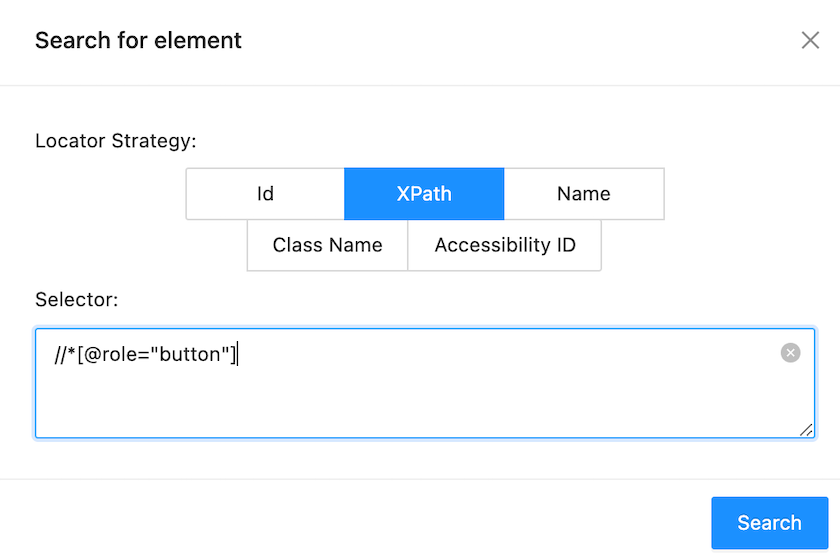

To test your xpath expressions, use the Search button.

Trigger a click

To trigger a click on the selected element, use the Tap icon.

Record a script

Appium Inspector lets you record a script based on your interactions with the app:

1. Launch Appium Inspector and connect to your device.

2. Click the Record icon in the top bar to start recording.



3. Perform the necessary actions:

   In the Search for Element panel, perform actions like locating elements and interacting with them using the Tap icon. The script area displays all your actions while recording is ongoing.

4. Reclick the Record icon to stop recording.

   Use the generated script as a starting point for your automated tests or modified as needed. In the example, the sampleTest method captures the recorded actions.

   To change the script's recording language, use the drop-down menu in the Recorder panel's top-right corner.

Troubleshooting

If you encounter an issue, please provide the details in community.amazondeveloper.com.
