Understanding data-binding, transformers, commands, and custom components - How to build a slideshow project with Alexa Presentation Language (APL)
Are you a skill developer looking to implement visuals to your skill? Your skill already implements APL but you are looking to enhance it? If yes, please continue reading.
This blog post will walk you through the creation of a fully-fledged slideshow project using APL. During the process I will be explaining how to implement data-binding, how to declare and use transformers (required for SpeakList and SpeakItem commands), and how to create custom APL components.
By the end of this blog post, you will have an APL document that will generate a dynamic slideshow with different pages according to the content of the following sample input:
[
{
"caption": "First Caption",
"image": "https://myServer/image1.png"
},
{
"caption": "Second Caption",
"image": "https://myServer/image2.png"
},
{
"caption": "Third Caption",
"image": "https://myServer/image3.png"
}
]
- An Amazon developer account. You can create one here
- Basic knowledge of the APL Authoring Tool
- A screen-enabled Alexa device like the Amazon Echo Show. If you don't have one, please follow the optional "Render the document from a skill" step
- The project will be a slideshow of pictures
- Use a Pager as the "core" component
- Every page of the slideshow should contain a picture and a caption, and it should cover the entire screen
- For every swipe, Alexa will read the caption of the next page
Let's start!
To build our layout, the first thing to do is to open the APL Authoring Tool.
Select "Start from scratch" and you will see a page like this:
As the base of our document, add a Container by pressing the + button, assign it an id, set its width to 100vw and its height to 100vh.
Vw and vh respectively refer to vertical and horizontal points (in %) of the device's viewport profile.
Then, it is time to add our core component: click on the base Container you have just added, then press the + button to add a Pager right below it. Again, assign it an id and its width / height dimensions.
Repeat this step and add another Container under the Pager: this will hold the pages of our slideshow.
The current component hierarchy should look like this:
Keep in mind that the Pager will generate a page for every child component we add under it.
Our project requires that a slideshow page has a picture and a caption, Let's add them! Go on the last Container you have added, press the + button add an Image component, and then a Text. They should be both under the Container.
Since we want our page to take 100% of the screen, we will reserve 90% of it for the Image, and the remaining 10% of it for the Text.
So make sure you set the following component properties as follows:
- Image: width 100vw and height 90vh
- Text: width 100vw and height 10vh
Data-binding is the process of filling the data property of native parent components (the Pager in our case) with an input array. This will define 2 things:
- How many times the first child component of the Pager should be repeated, which is equals to the length of the array
- The data that our APL document can have access to
Example: If our data array contains 3 elements, the first child of the Pager will be shown 3 times. In our particular case, 3 pages will be generated.
Click on the Pager in the Authoring Tool, and fill its data property with {payload.data.properties.values}. You will see that this refers to the content of the datasources mentioned below.
Let's test it! The current JSON representation of the Pager in our document should look like this:
{
"type": "Pager",
"id": "mainPager",
"width": "100vw",
"height": "100vh",
"data": "${payload.data.properties.values}",
"items": [{
"type": "Container",
"id": "myPageContainer",
"width": "100vw",
"height": "100vh",
"items": [{
"type": "Image",
"width": "100vw",
"height": "90vh",
"source": "https://public-us-east-1.s3.amazonaws.com/amazon-logo.png"
},
{
"type": "Text",
"width": "100vw",
"height": "10vh",
"text": "This is a page"
}
]
}]
}
Now, consider the following datasources:
{
"data":
{
"properties":
{
"values":["amazon","alexa" ,"skill"]
}
}
}
Copy them into the "DATA" section of the Authoring Tool, and send the layout to a device with the View on... button (or follow the Render the document from a skill" step at the end of the post)
You will see that the document contains 3 pages, even though only one Container (myPageContainer) is present. This is because the length of the array ${payload.data.properties.values} is 3.
Having trouble pasting? Download the full importable layout from here
The length of the array is conditioning the number of generated childs, but how to acces the actual data and display it to the user?
The input array is accessible from all the childs of the component you bound your data to, with the following evaluation (Look at the text property):
{
"type": "Text",
"width": "100vw",
"height": "10vh",
"text": "${data}"
}
What should I expect after setting it?
Every page of the Pager will access its relative portion of data, based on their position. Refer to the following table for further details:
page |
assigned array element |
resulting text value |
0 |
data[0] |
"amazon" |
1 |
data[1] |
"alexa" |
| 2 | data[2] | "skill" |
You can send the layout back to the device after setting the text property to ${data} to see that every page is now showing a different caption.
Now that we have explained how data-binding works, it is time to fill our datasources with meaningful data for our project.
Go back to the Authoring Tool, and replace the whole datasources object with the following JSON:
{
"data": {
"properties": {
"values": [
{
"name": "Page 1",
"caption": "First Caption",
"image": "https://myServer/image1.png"
},
{
"name": "Page 2",
"caption": "Second Caption",
"image": "https://myServer/image2.png"
},
{ "name": "Page 3",
"caption": "Third Caption",
"image": "https://myServer/image3.png"
}
]
},
"transformers": [
{
"inputPath": "values[*].caption",
"outputName": "transformerOutput",
"transformer": "textToSpeech"
}
]
}
}
We have just pasted the sample input from the introduction into the data.properties.values array and added a textToSpeech transformer in our datasources object.
What is a transformer? And why is it required for the SpeakItem command?
In a nutshell, transformer(s) are used to transform data present in datasources into alternative representations. Since our goal is to read the captions, and they are provided in the form of a string, we need a textToSpeech transformer.
Implementing a transformer is also requirement because to let Alexa read the captions we will be using the SpeakItem command, which relies on the speech property of components, and it can be only set with either an audio URL or the output of a transformer.
Let's have a closer look on how the transformer has been implemented here:
property |
value |
notes |
inputPath |
values[*].caption |
contains the input data to transform |
outputName |
transformerOutput |
output name needed for the speech property |
| transformer | textToSpeech | type of transformer used |
Keep all these information in mind since they are required for the next steps.
So far our page is made of a Container, an Image and a Text component, the whole component hierarchy should look like the following at this stage:
The next step is to make all these three components just single custom one.
Go on the APL tab of the Authoring Tool, locate the layouts key, and replace it with the following:
"layouts": {
"myPage": {
"parameters": [
"internalIndex",
"internalCaption",
"internalImageUrl"
],
"item": {
"type": "Container",
"id": "myPageContainer",
"width": "100vw",
"height": "100vh",
"items": [
{
"type": "Image",
"width": "100vw",
"height": "90vh",
"source": "${internalImageUrl}"
},
{
"type": "Text",
"speech": "${payload.data.properties.values[internalIndex].transformerOutput}",
"id": "pageText_${internalIndex}",
"width": "100vw",
"height": "10vh",
"text": "${internalCaption}"
}
]
}
}
}
We have just declared a custom layout called myPage, moved the mainPageContainer under it, and declared 3 properties (internalIndex, internalCaption, and internalImageUrl).
Are you wondering how to do this manually from the Authoring Tool? click here
As you might have understood from their names, these properties are private and can only be accessed from within the internal components of myPage. In fact, they are setting some properties of the internal Image and Text components.
Let's focus on some of the Text properties, that are needed for the whole SpeakItem mechanism to work:
property |
value |
notes |
id |
pageText_${internalIndex} |
pageText_0, pageText1, and so on based on the input array length |
speech |
${payload.data.properties.values[internalIndex].transformerOutput} |
referencing the output of the textToSpeech transformer |
From now on, it is possible to add a new component called myPage, that will only have that 3 properties mentioned above. Let's do it!

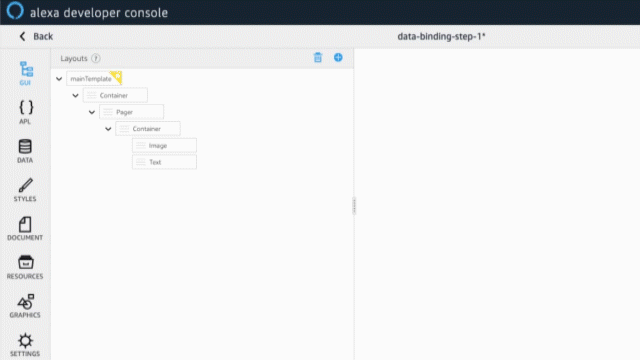

Delete the second Container of the document, click on the Pager, press the + button and add our new myPage component.
Set all the properties as follows:
property |
value |
notes |
internalIndex |
${index} |
index of the current page, inherited from the input array |
internalCaption |
${data.caption} |
caption property of the input array
|
| internalImageUrl | ${data.image} | image property of the input array |
At this point, our component hierarchy should look like this:
Now that our custom component is all set, let's proceed to the final step.
We want our project to read the caption after every swipe, so we need to declare the action that the Pager on every page change.
To accomplish that, we are going to declare that the onPageChanged event will execute the SpeakItem command against the current page.
Click on the APL tab of the Authoring Tool, and add the following property to the Pager:
"onPageChanged":
[
{
"type": "SpeakItem",
"componentId": "pageText_${event.source.value}"
}
]
This means that every time the page changes, the SpeakItem command will be executed against the Text component inside myPage, and since ${event.source.value} contains the index of the page after the swipe, Alexa will always read the caption that is displayed on the screen at that time.
More information about onPageChanged event can be found here.
Make sure that our input array contains all the images/captions you want to show, and send the document to the device!
You will see that for every swipe, the screen will change the picture and Alexa will read the caption out load.
Make sure to export the document from the Authoring Tool by pressing the download button on the upper-right corner, and make the file available in our backend.
From the endpoint code, send the Alexa.Presentation.APL.RenderDocument directive referencing the just downloaded file:
Node.js:
// from the LaunchRequest handler:
let speakOutput = 'Here is your slideshow!'
let aplDocument = require('./mySlideshow.json'),
return handlerInput.responseBuilder
.speak(speakOutput)
.addDirective({
type:'Alexa.Presentation.APL.RenderDocument',
token :'documentToken',
document: aplDocument.document,
datasources: aplDocument.datasources,
})
.getResponse();
Python:
# function declaration:
def _load_apl_document(file_path):
# type: (str) -> Dict[str, Any]
"""Load the apl json document at the path into a dict object."""
with open(file_path) as f:
return json.load(f)
# from LaunchRequest handler:
speakOutput = 'Here is your slideshow!'
aplDocument = _load_apl_document('./mySlideshow.json')
handler_input.response_builder.speak(speakOutput).add_directive(
RenderDocumentDirective(
token='documentToken',
document=aplDocument['document']
datasources=aplDocument['datasources']
)
)
return handler_input.response_builder.response
- Tweak the document! Check out all the properties available for the Pager, Image, and Text components
- Little challenge: Try to make the slideshow scrolling vertically
- Want to build more? Have a look at all the APL components and commands
If you are looking for additional support, post your question on the Alexa Developer Forums, or contact us. Also feel free to reach out to me on Twitter at @ugaetano_.
