Device Specifications: Echo Show | Amazon Fire Device Specifications

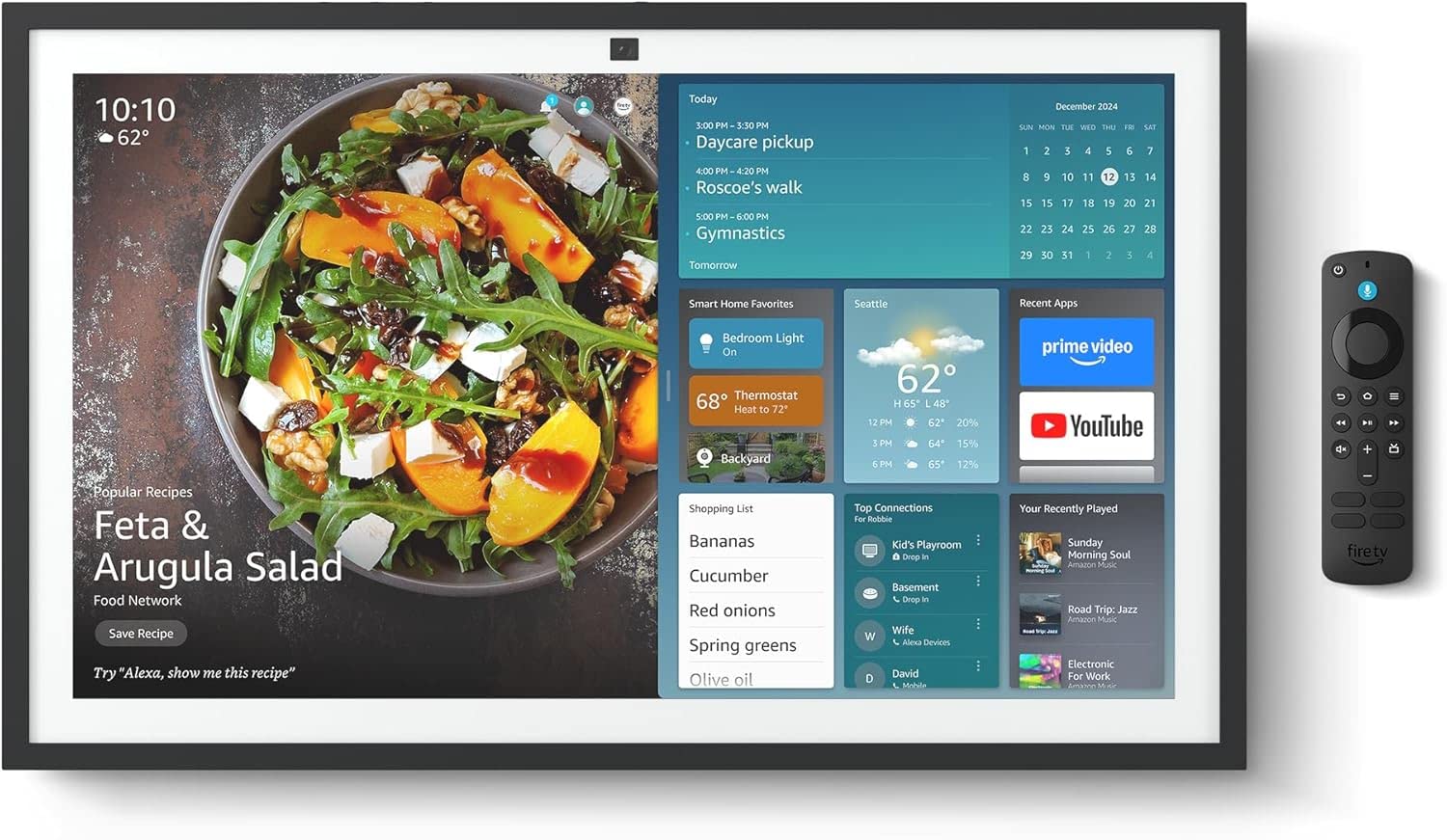

The Echo Show 21 (2024) is our stunning 21” Full-HD (1080p) smart display with built-in Fire TV and Alexa that's perfect for your kitchen and built to show you more. Use customizable widgets to keep your day on track, experience your favorite content with powerful vibrant sound and immersive HD streaming, and stay connected with crisp, clear video calling, with 3.3x zoom and wide field of view.

Echo Show 21 (2024) Device Specifications
Feature	Description
Friendly name	Echo Show 21 (2024)
Retail name	Echo Show 21 (2024)
Release year	2024
Marketplaces available (More details)	amazon.de amazon.fr amazon.it amazon.es amazon.com amazon.ca amazon.com.mx amazon.co.uk
Form factor	Echo Show
Build model	`AEOSY`
Android version `android.os.Build.VERSION.SDK_INT`	Android Level 28 (Android 9)
OS version	Fire OS 7
Processor (SoC)	Amlogic PopcornA (Pop1), WiFi 6e connectivity with MT7921A chipset
CPU	ARM Cortex-A55 CPU up to 1.5 GHz
Application Binary Interface (ABI)	32-bit
GPU	ARM G52 MP1 2EE up to 504 MHz
Memory (RAM)	4 GB
Memory (flash)	16 GB eMMC
Camera	13 MP camera with 124-degree diagonal field of view
Camera cover	Physical camera cover
Camera Temporal Noise Reduction (TNR)	Supported
Mic	4-microphone far-field array
Connectors / Ports	AC Power uUSB for Ethernet connectivity through Rugen adapter (optional accessory purchased separately)
Device buttons	Volume +/-, mic/camera
Sensors	Accelerometer and RGB ALS sensors
Ultrasonic Motion Detection	Not supported
Speakers	Dual 2 inch woofers plus dual 0.6 inch tweeters
Display	- 21.4" panel size with 1080p resolution (1920 x 1080) - Full lamination with 400 nits brightness - Color gamut: 72% NTSC - Touch capability: TP (+AF) GFF touch
Resolution and refresh rates	Display: 21.4" panel with 1080p (1920 x 1080) resolution, 16:9 ratio, and 400 nits brightness
Audio codecs (input formats)	AAC Profile (AAC LC). Support for mono/stereo/5.0/5.1 content with standard sampling rates from 8 to 48 kHz MPEG-4 HE AAC Profile (AAC+). Support for mono/stereo/5.0/5.1 content with standard sampling rates from 16 to 48 kHz MPEG-4 HE AACv2 Profile (enhanced AAC+). Support for mono/stereo/5.0/5.1 content with standard sampling rates from 16 to 48 kHz AAC ELD (enhanced low delay AAC). Support for mono/stereo content with standard sampling rates from 16 to 48 kHz USAC. Support for mono/stereo content with standard sampling rates from 7.35 to 48 kHz FLAC. Up to 48kHz, 2 channels, 16-bit and 24-bit (no dither for 24 bit) MIDI. MIDI (Type 0 and 1), DLS (Version 1 and 2), XMF, and Mobile XMF. Ringtone formats RTTTL/RTX, OTA, and iMelody MP3. Up to 48kHz, 2 channels in 16-bit Vorbis. Ogg (.ogg), Matroska (.mkv) PCM/Wave. Up to 192kHz, 8 channels, up to 32-bit Opus. Up to 8 channels, 48 kHz
Video codecs	AV1: Hardware accelerated up to 1080p @ 60fps, 20 Mbps, Main Profile Level 4.1 H.265 (HEVC) (High Efficiency Video Coding): Hardware accelerated up to 1080p @ 60fps, 20 Mbps, Main Profile Level 4.1 H.264: Hardware accelerated up to 1080p @ 60fps, or 720p @ 60fps, 20 Mbps, High Profile up to Level 4 H.263: Supported up to 1080p @ 30fps, 6 Mbps, Profile 0 Level 70 VP9: Hardware accelerated up to 1080p @ 60fps, Profile 2 up to 20 Mbps VP8: Supported up to 1080p 30fps. Baseline profile, non-secure MPEG-4: Hardware accelerated up to 1080p @ 60fps MPEG-2: Hardware accelerated up to 1080p @ 60fps
DRM Digital Rights Management	WideVine L1 v11 PlayReady 3.3 HDCP 2.2 RX
HDR High-dynamic-range	Not supported
Bluetooth	- Bluetooth 5.0 (BLE supported) - Advanced Audio Distribution Profile (A2DP) - Audio/Video Remote Control Profile (AVRCP) for voice control of connected mobile devices
Max OpenGL version Open Graphics Library – 2D and 3D graphics rendering	OpenGL ES 3.2
Wifi	802.11 a/b/g/n/ac 2x2 MIMO (2.4 GHz and 5.0 GHz dual band), WiFi 6E (802.1ax)

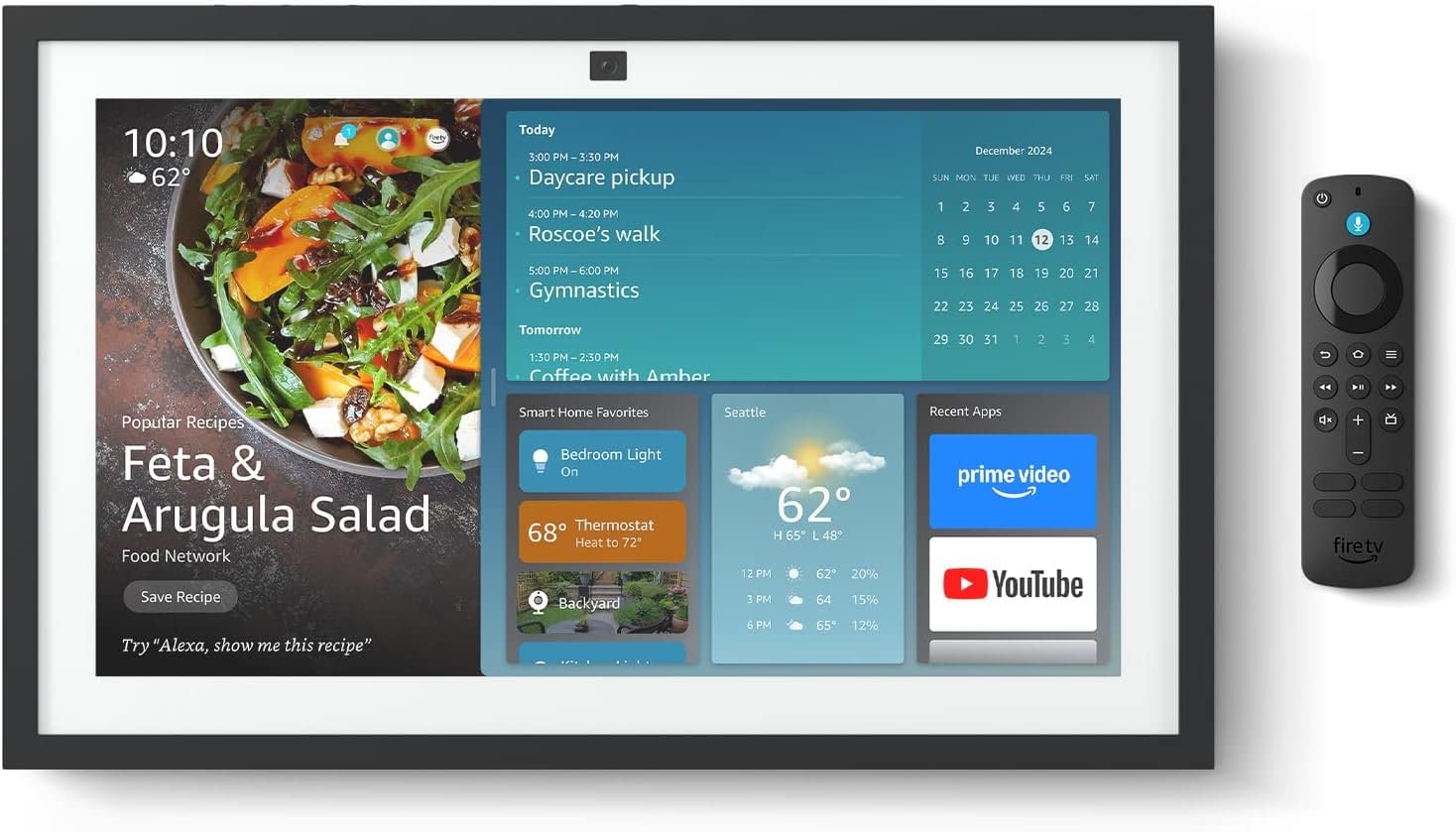

The Echo Show 15 - 2nd Gen (2024) is our stunning 15.6” Full-HD (1080p) smart display that's perfect for your kitchen and ready to show you more. Use customizable widgets to keep your day on track, watch your favorite shows with Fire TV and powerful vibrant sound, and enjoy natural video calling, with 3.3x zoom and wide field of view.

Echo Show 15 - Gen 2 (2024) Device Specifications
Feature	Description
Friendly name	Echo Show 15 - Gen 2 (2024)
Retail name	Echo Show 15 - Gen 2 (2024)
Release year	2024
Marketplaces available (More details)	amazon.de amazon.fr amazon.it amazon.es amazon.co.jp amazon.com.au amazon.com.br amazon.com amazon.ca amazon.com.mx amazon.co.uk
Form factor	Echo Show
Build model	`AEOCY`
Android version `android.os.Build.VERSION.SDK_INT`	Android Level 28 (Android 9)
OS version	Fire OS 7
Processor (SoC)	Amlogic PopcornA (Pop1), WiFi 6e connectivity with MT7921A chipset
CPU	ARM Cortex-A55 CPU up to 1.5 GHz
Application Binary Interface (ABI)	32-bit
GPU	ARM G52 MP1 2EE up to 504 MHz
Memory (RAM)	3 GB
Memory (flash)	16 GB eMMC
Camera	13 MP camera with 124-degree diagonal field of view
Camera cover	Physical camera cover
Camera Temporal Noise Reduction (TNR)	Supported
Mic	4-microphone far-field array
Connectors / Ports	AC Power uUSB for Ethernet connectivity through Rugen adapter (optional accessory purchased separately)
Device buttons	Volume +/-, mic/camera
Sensors	Accelerometer and RGB ALS sensors
Ultrasonic Motion Detection	Not supported
Speakers	Dual 2 inch woofers plus dual 0.6 inch tweeters
Display	- 15.6" panel size with 1080p resolution (1920 x 1080) - Full lamination with 400 nits brightness - Color gamut: 72% NTSC - Touch capability: TP (+AF) GFF touch
Resolution and refresh rates	Display: 15.6" panel with 1080p (1920 x 1080) resolution, 16:9 ratio, and 400 nits brightness
Audio codecs (input formats)	AAC Profile (AAC LC). Support for mono/stereo/5.0/5.1 content with standard sampling rates from 8 to 48 kHz MPEG-4 HE AAC Profile (AAC+). Support for mono/stereo/5.0/5.1 content with standard sampling rates from 16 to 48 kHz MPEG-4 HE AACv2 Profile (enhanced AAC+). Support for mono/stereo/5.0/5.1 content with standard sampling rates from 16 to 48 kHz AAC ELD (enhanced low delay AAC). Support for mono/stereo content with standard sampling rates from 16 to 48 kHz USAC. Support for mono/stereo content with standard sampling rates from 7.35 to 48 kHz FLAC. Up to 48kHz, 2 channels, 16-bit and 24-bit (no dither for 24 bit) MIDI. MIDI (Type 0 and 1), DLS (Version 1 and 2), XMF, and Mobile XMF. Ringtone formats RTTTL/RTX, OTA, and iMelody MP3. Up to 48kHz, 2 channels in 16-bit Vorbis. Ogg (.ogg), Matroska (.mkv) PCM/Wave. Up to 192kHz, 8 channels, up to 32-bit Opus. Up to 8 channels, 48 kHz
Video codecs	AV1: Hardware accelerated up to 1080p @ 60fps, 20 Mbps, Main Profile Level 4.1 H.265 (HEVC) (High Efficiency Video Coding): Hardware accelerated up to 1080p @ 60fps, 20 Mbps, Main Profile Level 4.1 H.264: Hardware accelerated up to 1080p @ 60fps, or 720p @ 60fps, 20 Mbps, High Profile up to Level 4 H.263: Supported up to 1080p @ 30fps, 6 Mbps, Profile 0 Level 70 VP9: Hardware accelerated up to 1080p @ 60fps, Profile 2 up to 20 Mbps VP8: Supported up to 1080p 30fps. Baseline profile, non-secure MPEG-4: Hardware accelerated up to 1080p @ 60fps MPEG-2: Hardware accelerated up to 1080p @ 60fps
DRM Digital Rights Management	WideVine L1 v11 PlayReady 3.3 HDCP 2.2 RX
HDR High-dynamic-range	Not supported
Bluetooth	- Bluetooth 5.0 (BLE supported) - Advanced Audio Distribution Profile (A2DP) - Audio/Video Remote Control Profile (AVRCP) for voice control of connected mobile devices
Max OpenGL version Open Graphics Library – 2D and 3D graphics rendering	OpenGL ES 3.2
Wifi	802.11 a/b/g/n/ac 2x2 MIMO (2.4 GHz and 5.0 GHz dual band), WiFi 6E (802.1ax)

The Echo Show 15 (2021) is our first Smart Display which can be mounted on a wall or placed on a counter. It has a 15.6” Full HD display that supports both landscape and portrait orientation. With an Amlogic Pop1 processor supporting AV1 codec, 3GB RAM and 16GB of flash memory, far-field Alexa capability, and touch support, Echo Show 15 is our most capable Smart Display yet. Ask Alexa to control video cameras, thermostats, lights, and other compatible devices. Video call friends and family with its 5MP camera. With customizable widgets, keep track of your family calendar, sticky notes, shopping lists, and more.

Echo Show 15 (2021) Device Specifications
Feature	Description
Friendly name	Echo Show 15 (2021)
Retail name	Echo Show 15 (2021)
Release year	2021
Marketplaces available (More details)	amazon.de amazon.fr amazon.it amazon.es amazon.co.jp amazon.com.au amazon.com.br amazon.com amazon.ca amazon.com.mx amazon.co.uk
Form factor	Echo Show
Build model	`AEOHY`
Android version `android.os.Build.VERSION.SDK_INT`	Android Level 28 (Android 9)
OS version	Fire OS 7
Processor (SoC)	Amlogic PopcornA (Pop1)
CPU	4xA73+4xA53
Application Binary Interface (ABI)	32-bit
GPU	ARM Mali-G52 MP8(8EE)
Memory (RAM)	3 GB
Memory (flash)	16 GB eMMC
Camera	5 MP, 1/5 inch
Camera cover	Physical camera cover
Camera Temporal Noise Reduction (TNR)	Supported
Mic	6-Mic array
Connectors / Ports	Power Input Micro USB
Device buttons	Volume +/-, mic/camera
Sensors	ALS sensor
Ultrasonic Motion Detection	Not supported
Speakers	Dual 1.6 inch full-range drivers in 140cc sealed boxes. Stereo configuration in Landscape, dual-mono configuration in Portrait
Display	Full 1080 (1920 x 1080) resolution
Resolution and refresh rates	Full 1080 (1920 x 1080) resolution ratio: 16:9. GFF Touch
Audio codecs (input formats)	AAC Profile (AAC LC). Support for mono/stereo/5.0/5.1 content with standard sampling rates from 8 to 48 kHz MPEG-4 HE AAC Profile (AAC+). Support for mono/stereo/5.0/5.1 content with standard sampling rates from 16 to 48 kHz MPEG-4 HE AACv2 Profile (enhanced AAC+). Support for mono/stereo/5.0/5.1 content with standard sampling rates from 16 to 48 kHz AAC ELD (enhanced low delay AAC). Support for mono/stereo content with standard sampling rates from 16 to 48 kHz USAC. Support for mono/stereo content with standard sampling rates from 7.35 to 48 kHz FLAC. Up to 48kHz, 2 channels, 16-bit and 24-bit (no dither for 24 bit) MIDI. MIDI (Type 0 and 1), DLS (Version 1 and 2), XMF, and Mobile XMF. Ringtone formats RTTTL/RTX, OTA, and iMelody MP3. Up to 48kHz, 2 channels in 16-bit Vorbis. Ogg (.ogg), Matroska (.mkv) PCM/Wave. Up to 192kHz, 8 channels, up to 32-bit Opus. Up to 8 channels, 48 kHz
Video codecs	AV1: Hardware accelerated up to 1080p @ 60fps, 20 Mbps, Main Profile Level 4.1 H.265 (HEVC) (High Efficiency Video Coding): Hardware accelerated up to 1080p @ 60fps, 20 Mbps, Main Profile Level 4.1 H.264: Hardware accelerated up to 1080p @ 60fps, or 720p @ 60fps, 20 Mbps, High Profile up to Level 4 H.263: Supported up to 1080p @ 30fps, 6 Mbps, Profile 0 Level 70 VP9: Hardware accelerated up to 1080p @ 60fps, Profile 2 up to 20 Mbps VP8: Supported up to 1080p 30fps. Baseline profile, non-secure MPEG-4: Hardware accelerated up to 1080p @ 60fps MPEG-2: Hardware accelerated up to 1080p @ 60fps
DRM Digital Rights Management	WideVine L1 v11 PlayReady 3.3 HDCP 2.2 RX
HDR High-dynamic-range	Not supported
Bluetooth	Bluetooth 5.0 (BLE supported)
Max OpenGL version Open Graphics Library – 2D and 3D graphics rendering	OpenGL ES 3.2
Wifi	802.11 a, 802.11 b, 802.11 g, 802.11 n, 802.11 ac, dual band, 2x2 MIMO
