By Sam Morgan, Head of Education at Makers Academy

Editor's note: This is part six and the final blog of our Makers Academy series for Ruby developers. Learn more about this free training on the Alexa Skills Kit and read part one, part two, part three, part four, and part five. Check out the full training course for free online.

We will be using the Ralyxa framework during this module.

In earlier modules, we built an intermediate skill called Pizza Buddy. This skill allows users to:

• Place pizza orders, and
• Query orders that have been made.

In this module, we will authenticate users via Open Authentication (OAuth) using Login with Amazon. Users will not be able to order a pizza until they are logged into their account, and users will only be able to list pizzas that they themselves have ordered.

This kind of authentication is designed to work seamlessly with other user management protocols you might use in your application. We will be creating a User entity from scratch, but authentication in this way can hook into Devise, Clearance, Sorcery, or any other authentication framework you might use.

Overview

A completed version of the Pizza Buddy application is available here. You can use the commits to guide your build, or fork and play with the completed application. This walkthrough covers commits 16 - 20.

You can fork directly from this commit to start this module.

You can take two routes through this walkthrough:

1. Quick steps: Do you have some experience of Alexa, Ruby, and OAuth? This is a challenge-based way to approach building Pizza Buddy. It's designed for people who want to build their ability to implement, rather than understand. It's a more complicated but also more rewarding approach.
2. Detailed walkthrough: Are you new to Alexa, Ruby, or OAuth? Want to get a clear grounding in some Alexa/Ruby techniques, and understand more about OAuth? This step-by-step walkthrough guides you through the entire process. This is also a helpful reference tool for those attempting the quick steps approach.

If you get stuck, you can refer to the detailed walkthrough as the former directly maps to the latter.



Quick Steps

Authenticating with OAuth

1. Set up a Login with Amazon (LWA) Security Profile, and enable your skill for account linking with the LWA details.
2. Send an account linking card to the user if the user lacks an OAuth access token on launch.
3. If the user has an access token during a LaunchRequest, authenticate and log in, or sign up, the user. Checkpoint 1

Managing Pizza Ordering Per-User

1. Modify the ConfirmPizzaOrder intent handler to send an account linking card to the user if they lack an OAuth access token.
2. Modify pizza saving in the ConfirmPizzaOrder intent handler to ensure that the saved pizza belongs_to the authenticated user.
3. Modify the ListOrders intent handler to list only pizzas belonging to the currently-authenticated user.



Detailed Walkthrough

Authenticating with OAuth

1. Set up a Login with Amazon Security Profile, and enable account linking in your skill

Before we can authenticate our users, we must enable account linking on our skill. This requires several pieces of information. To get these piece of information, we must set up a Login with Amazon (LWA) Security Profile.

If you would prefer to use another OAuth service to authenticate your users, substitute the LWA setup steps with those of setting up your alternative provider.

To create a new LWA profile for your Alexa skill, log in to the Amazon Developer Console. Then:

1. click on "Apps & Services", then
2. click "Login with Amazon", then
3. click the button "Create a New Security Profile".

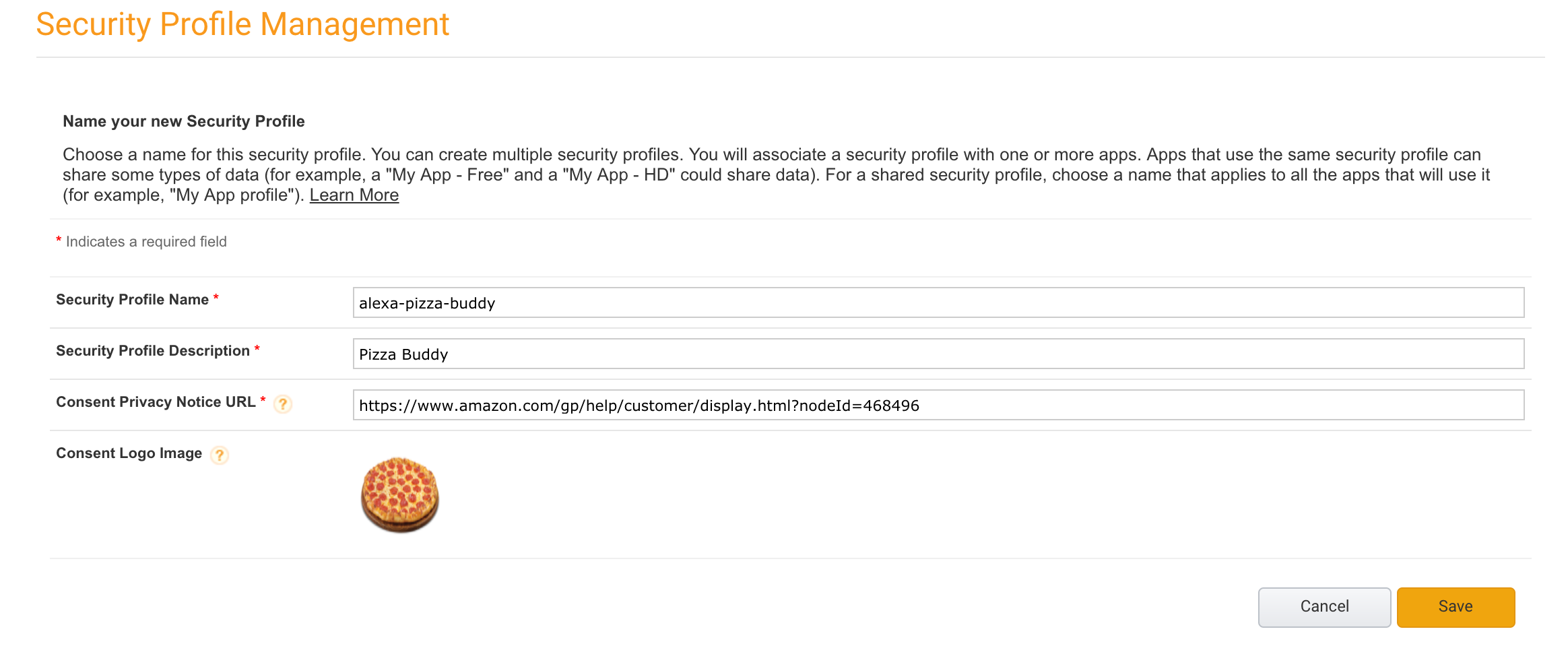

Create a new security profile. Use the table below to fill out the required sections of the form.

Key	Value
Name	alexa-pizza-buddy
Description	Pizza Buddy
Privacy Notice URL	https://www.amazon.com/gp/help/customer/display.html?nodeId=468496 (use your own when launching non-test skills)
Icon URL	http://assets.makersacademy.com/images/alexa-ruby-course/6/pizza.jpg (or another pizza!)

Make a note of your Client ID and Client Secret:

Copy a redirect URL from the "Account Linking"' section of your skill Configuration. It may start with "https://layla.amazon.com/api/skill" or with "https://pitangui.amazon.com/api/skill". Paste this redirect URL into the Security Profile "Allow Return URLs" option (it's under "Web Settings"):

Return to the Account Linking section of our Pizza Buddy skill, and use the table below to fill out the required sections of the form.

Key	Value
Account Linking	Yes
Authorization URL	https://www.amazon.com/ap/oa
Client ID	The Client ID from the LWA Security Profile. This has a format such as amzn1-application-oa2-client-xxx
Scope	LWA supports several scopes. For this example, let’s use “profile”. This will allow Pizza Buddy to retrieve a full name for the user, and greet them personally
Authorization Grant Type	Select 'Auth Code Grant'
Access Token URI	https://api.amazon.com/auth/o2/token
Client Secret	The Client Secret from the LWA Security Profile
Client Authentication Scheme	HTTP Basic (Recommended)

Once you save this data, you are ready to send users an account linking card in the event they are not yet authenticated with your skill.

2. Send an account linking card to the user if the user lacks an OAuth access token on launch

Now that we have configured account linking, let's update our LaunchRequest intent handler to send the user an account linking card if they lack an access token. The user's workflow will be:

1. User: "Alexa, launch Pizza Buddy".
2. Alexa: "Please authenticate Pizza Buddy via the Alexa app." Sends an account linking card to the user's Alexa app.
3. User: launches the Alexa app, clicks the account linking card, completes Login with Amazon using their Amazon customer details. Receives an access token in return.
4. User: "Alexa, launch Pizza Buddy".
5. Alexa: "Welcome to Pizza Buddy. Would you like a new pizza, or to list orders?"

In the first instance (1), our Sinatra application receives a JSON packet with no user access token:

// redacted for brevity
{
  "session": {
    "user": {
      "userId": "<REDACTED>"
    }
  }
}

Once the user has completed the Login with Amazon authentication step, their subsequent requests (4) include an access token:

// redacted for brevity
{
  "session": {
    "user": {
      "userId": "<REDACTED>",
      "accessToken": "Atza|<SOME LONG STRING>"
    }
  }
}

We can use the existence of this access token to tell if the user has authenticated with LWA yet. Ralyxa provides us with some convenience methods for reading it, and for sending the account linking card if the user has not yet authenticated:

# inside intents/launch_request.rb

intent "LaunchRequest" do
  return tell("Please authenticate Pizza Buddy via the Alexa app.", card: link_account_card) unless request.user_access_token_exists?

  ask("Welcome to Pizza Buddy. Would you like a new pizza, or to list orders?")
end

You may need to update to the latest version of Ralyxa for the above syntax (a guard clause) to work correctly.

Using an Alexa device, test this card. On launch, the user should receive a card in their Alexa app. Clicking on that will take them to Login with Amazon. After providing their details, the user explicitly authorizes Pizza Buddy to access their name and email address:

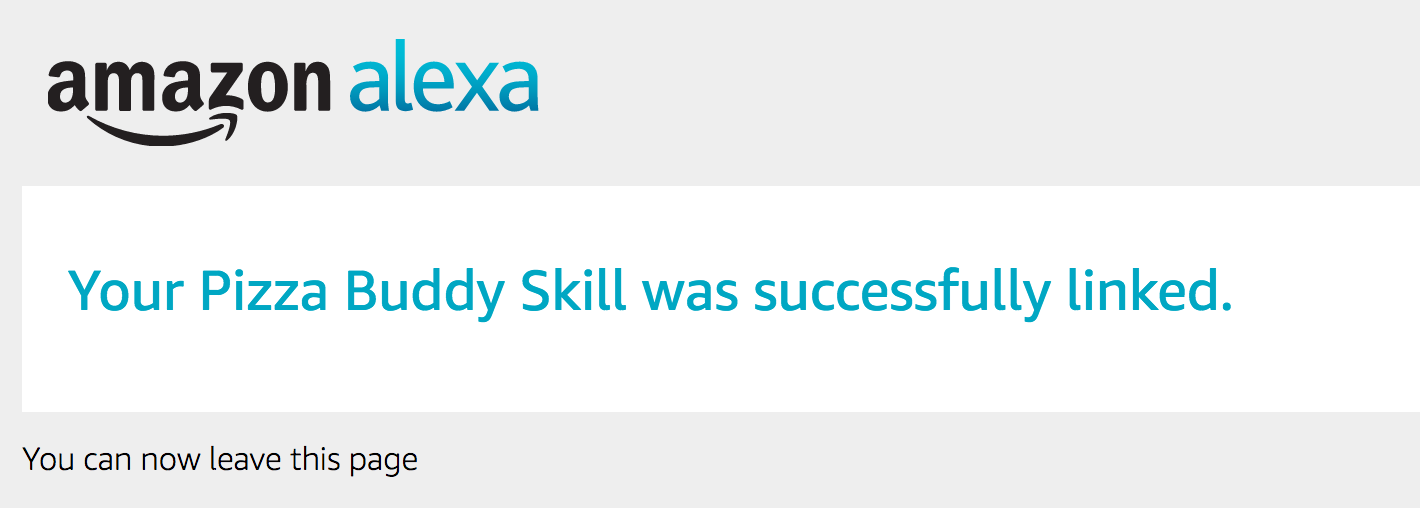

Once they agree, they are redirected to a page that reports success:

3. If the user has an access token during a LaunchRequest, authenticate and log in, or sign up, the user

Wouldn't it be great to welcome the user more personally to Pizza Buddy? Once the user has logged in with OAuth, we can access permitted Amazon customer data from the Amazon API. While we're doing this, we will create, or find, a corresponding User entity in our database.

Our ideal interface for the LaunchRequest intent handler would be something along these lines:

# inside intents/launch_request.rb

intent "LaunchRequest" do
  return tell("Please authenticate Pizza Buddy via the Alexa app.", card: link_account_card) unless request.user_access_token_exists?

  user = User.authenticate(request.user_access_token)

  ask("Welcome to Pizza Buddy, #{ user.name }. Would you like a new pizza, or to list orders?")
end

Let's set up a new User model that can save some key attributes – name and access_token, to start – to the database. We'll test-drive this implementation:

# in spec/user_spec.rb

require 'user'

RSpec.describe User do
  before do
    DataMapper.setup(:default, 'postgres://pizzabuddy@localhost/pizzabuddytest')
    DataMapper.finalize
    User.auto_migrate!
  end

  describe 'Saving to a database' do
    it 'starts out unpersisted' do
      user = User.new
      expect(user.id).to be_nil
    end

    it 'can be persisted' do
      user = User.new(name: "Timmy", access_token: "AccessToken")
      user.save

      persisted_user = User.last
      expect(persisted_user.id).not_to be_nil
      expect(persisted_user.name).to eq "Timmy"
      expect(persisted_user.access_token).to eq "AccessToken"
    end
  end
end

Run rspec. A simple way to solve the failure is to implement a basic User class inside /lib:

# in lib/user.rb

require 'data_mapper'

class User
  include DataMapper::Resource

  property :id,           Serial
  property :name,         String
  property :access_token, Text
end

We're using the Text type for the access_token property as access tokens can be longer than the String type would allow.

We will also need to update database.rb to account for the new tables:

# in database.rb

require 'data_mapper'
require './lib/pizza'
require './lib/user'

DataMapper.setup(:default, 'postgres://pizzabuddy@localhost/pizzabuddy')
DataMapper.finalize
Pizza.auto_migrate!
User.auto_migrate!

Now that we have a basic user entity, serializable to a database, let's implement an .authenticate method on the User class. We expect this method to either find an existing user, or create a new user, depending on their name and access token:

• If the user does not exist, fetch their name from the Amazon API (using their access token), then save their name and access token to the database. Return the new user.
• If the user already exists (i.e. if there is a user with that name AND access token already in the database), retrieve that existing user.

# in spec/user_spec.rb, with some omissions for brevity

require 'user'

RSpec.describe User do
  # ...DataMapper setup...
  # ...pre-existing Database tests...

  describe '.authenticate' do
    let(:amazon_response) do
      amazon_response = {
        name: "Timmy Tales"
      }.to_json
    end
    let(:client) { double(:"Net::HTTP", get: amazon_response) }

    it 'creates a user if one does not exist' do
      expect { User.authenticate("AccessToken", client) }.to change { User.count }.by(1)
    end

    it 'retrieves a user if a one with that name and access token does exist' do
      User.create(name: "Timmy", access_token: "AccessToken")

      expect { User.authenticate("AccessToken", client) }.not_to change { User.count }
      expect(User.authenticate("AccessToken", client).name).to eq "Timmy"
      expect(User.authenticate("AccessToken", client).access_token).to eq "AccessToken"
    end
  end
end

Let's implement this method in User:

# in lib/user.rb

require 'data_mapper'
require 'net/http'
require 'uri'
require 'json'

class User
  AMAZON_API_URL = "https://api.amazon.com/user/profile".freeze
  include DataMapper::Resource

  property :id, Serial
  property :name, String
  property :access_token, String

  def self.authenticate(access_token, client = Net::HTTP)
    uri = URI.parse("#{ AMAZON_API_URL }?access_token=#{ access_token }")
    first_name = JSON.parse(client.get(uri))["profile"]["name"].split(" ").first
    first_or_create(name: first_name, access_token: access_token)
  end
end

Returning to our LaunchRequest handler:

# inside intents/launch_request.rb

intent "LaunchRequest" do
  return tell("Please authenticate Pizza Buddy via the Alexa app.", card: link_account_card) unless request.user_access_token_exists?

  user = User.authenticate(request.user_access_token)

  ask("Welcome to Pizza Buddy, #{ user.name }. Would you like a new pizza, or to list orders?")
end

Once the user has completed the account linking card, our application will authenticate, then retrieve or save a user.

Double-check that everything has been correctly set up. Test this step using your Alexa device, by saying "Alexa, launch Pizza Buddy" and checking your Alexa app.

Managing Pizza Ordering Per-User

4. Modify the ConfirmPizzaOrder intent handler to send an account linking card to the user if the user lacks an OAuth access token.

You can jump directly to this step by forking from this commit.

Just as with the LaunchRequest handler, we need users to be authenticated before they confirm their order. Add an authentication guard clause to the first line of the ConfirmPizzaOrder intent handler:

# in intents/confirm_pizza_order.rb

require './lib/pizza'
require 'active_support/core_ext/array/conversions'

intent "ConfirmPizzaOrder" do
  return tell("To confirm your order, please authenticate Pizza Buddy via the Alexa app.", card: link_account_card) unless request.user_access_token_exists?

  pizza = Pizza.new(size: request.session_attribute('size'), toppings: request.session_attribute('toppings'))
  pizza.save

  response_text = ["Thanks! Your #{ pizza.size } pizza with #{ pizza.toppings.to_sentence } is on ",
                   "its way to you. Your order ID is #{ pizza.id }. Thank you for using Pizza Buddy!"].join

  card_title = "Your Pizza Order ##{ pizza.id }"
  card_body = "You ordered a #{ pizza.size } pizza with #{ pizza.toppings.to_sentence }!"
  card_image = "https://image.ibb.co/jeRZLv/alexa_pizza.png"
  pizza_card = card(card_title, card_body, card_image)

  tell(response_text, card: pizza_card)
end

5. Modify pizza saving in the ConfirmPizzaOrder intent handler to ensure that the saved pizza belongs_to the authenticated user.

Users should own any pizzas they have ordered. Implement a has_many relationship between User and Pizza:

# in lib/user.rb, with omissions for brevity
require_relative './pizza'

class User
  include DataMapper::Resource

  property :id, Serial
  property :name, String
  property :access_token, String

  # implement a one-to-many relationship
  has n,   :pizzas

  # ...rest of class...
end

Also, implement the reflective relationship, so Pizza instances can belong_to a User:

# in lib/pizza.rb, with omissions for brevity
require_relative './user'

class Pizza
  include DataMapper::Resource

  property   :id, Serial
  property   :size, String
  property   :toppings, PgArray

  # implement a belongs_to relationship
  belongs_to :user

  # ...rest of class...
end

We will need to update the spec/pizza_spec.rb tests for Pizza to reflect this new requirement:

# in spec/pizza_spec.rb, with omissions for brevity
require 'pizza'

RSpec.describe Pizza do
  # ... rest of tests ...

  describe 'Saving to a database' do
    it 'starts out unpersisted' do
      pizza = Pizza.new(size: 'small', toppings: ['cheese', 'ham'])
      expect(pizza.id).to be_nil
    end

    it 'can be persisted' do
      # Add a user_id parameter here, to mock the required user this pizza must belong_to
      pizza = Pizza.new(size: 'small', toppings: ['cheese', 'ham'], user_id: 1)
      pizza.save

      expect(pizza.id).not_to be_nil
    end
  end
end

Modify the ConfirmPizzaOrder intent, so created pizzas automatically belong to an individual user:

require './lib/pizza'
require 'active_support/core_ext/array/conversions'

intent "ConfirmPizzaOrder" do
  return tell("To confirm your order, please authenticate Pizza Buddy via the Alexa app.", card: link_account_card) unless request.user_access_token_exists?

  user = User.authenticate(request.user_access_token)
  # any new pizzas must belong to the authenticated user
  pizza = user.pizzas.new(size: request.session_attribute('size'), toppings: request.session_attribute('toppings'))
  pizza.save

  response_text = ["Thanks! Your #{ pizza.size } pizza with #{ pizza.toppings.to_sentence } is on ",
                   "its way to you. Your order ID is #{ pizza.id }. Thank you for using Pizza Buddy!"].join

  card_title = "Your Pizza Order ##{ pizza.id }"
  card_body = "You ordered a #{ pizza.size } pizza with #{ pizza.toppings.to_sentence }!"
  card_image = "https://image.ibb.co/jeRZLv/alexa_pizza.png"
  pizza_card = card(card_title, card_body, card_image)

  tell(response_text, card: pizza_card)
end

Ordered Pizzas now belong to the authenticated User who ordered them.

6. Modify the ListOrders intent handler to list only pizzas belonging to the currently-authenticated user.

Unauthenticated users should not be able to list any orders. Authenticated users should only be able to list orders that they have made.

Implement an authentication guard clause in the ListOrders intent handler to block unauthenticated users:

# in intents/list_orders.rb

require './lib/pizza'

intent "ListOrders" do
  return tell("To list your orders, please authenticate Pizza Buddy via the Alexa app.", card: link_account_card) unless request.user_access_token_exists?

  orders = Pizza.first(4).map { |order| "a #{ order.size } pizza with #{ order.toppings.to_sentence }" }
  response_text = ["There are #{ user.pizzas.count } orders. ",
                   "#{ orders.to_sentence }. ",
                   "You can ask to list orders again, or order a pizza."].join

  ask(response_text)
end

To ensure that users can only list orders that they have made, authenticate users with an access token, and scope the query to pizzas belonging to the authenticated user:

require './lib/pizza'

intent "ListOrders" do
  return tell("To list your orders, please authenticate Pizza Buddy via the Alexa app.", card: link_account_card) unless request.user_access_token_exists?

  # Authenticate users with an access token
  user = User.authenticate(request.user_access_token)

  # Scope the pizza query to pizzas belonging to the authenticated user
  if user.pizzas.any?
    orders = user.pizzas.first(4).map { |order| "a #{ order.size } pizza with #{ order.toppings.to_sentence }" }
    response_text = ["You have made #{ user.pizzas.count } orders. ",
                     "#{ orders.to_sentence }. ",
                     "You can ask to list orders again, or order a pizza."].join
  else
    response_text = "You haven't made any orders yet. To start, say 'order a pizza'."
  end

  ask(response_text)
end

Next Step: Build Your Own

Congratulations! You now know how to authenticate skill users with OAuth. This concludes module 6. You can fork the completed application at the end of this module from this commit.

We have now covered all aspects required to build an advanced skill using Alexa and Ruby. Need a refresher? Check out all previous modules here. Now, go build your own Alexa skill! We can’t wait to see what build for Alexa.



---

Build a Skill, Get an Echo Dot

The Alexa Skills Kit (ASK) enables developers to build capabilities, called skills, for Alexa. ASK is a collection of self-service APIs, documentation, tools, and code samples that make it fast and easy for anyone to add skills to Alexa.

Developers have built more than 13,000 skills with ASK. Explore the stories behind some of these innovations, then start building your own skill. Once you publish your skill, apply to receive a free Echo Dot. This promotion is available in the US only. Check out our promotions in the UK, Germany, and India.
